Equipped with 10Gbps-Compatible Ports

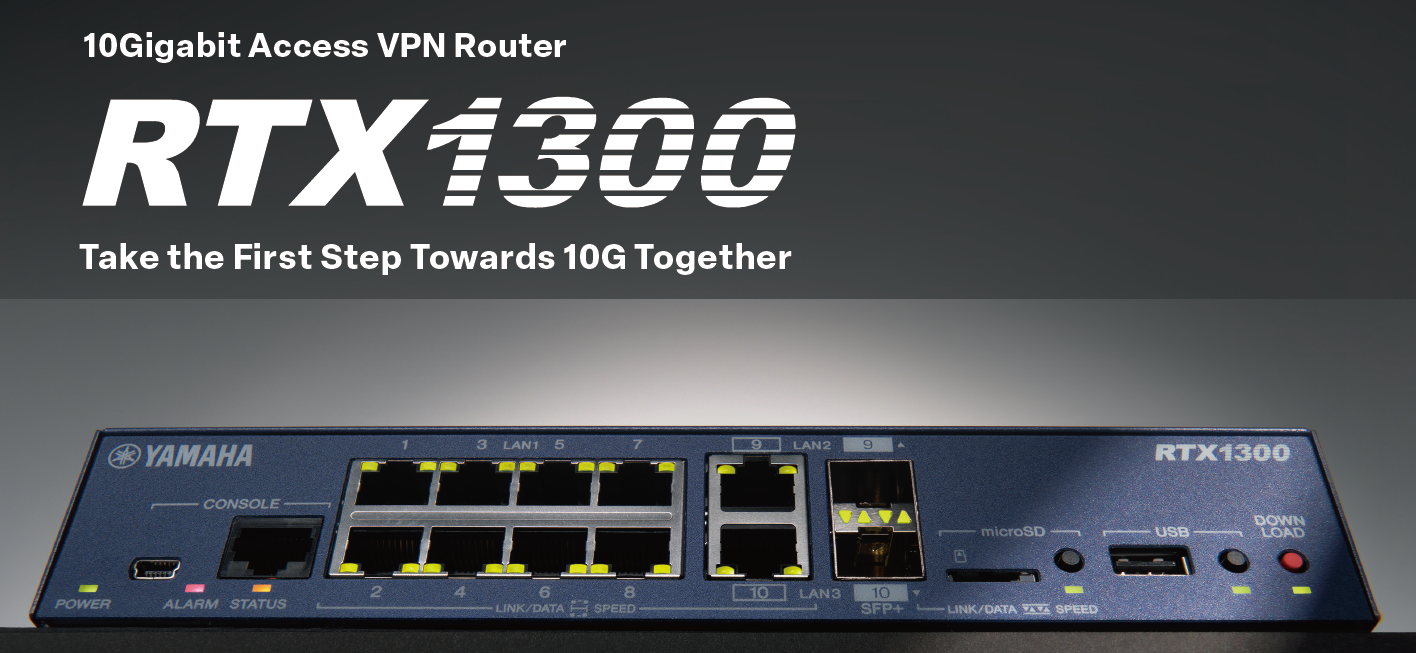

RTX1300

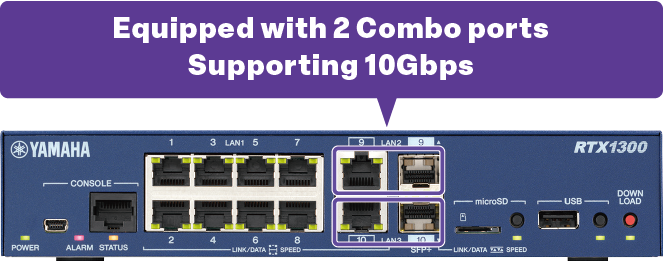

- Equipped with two 10 Gigabit combo ports
- Significant improvement in various processing capabilities
- The new "Flexible LAN/WAN Port" function allows flexible changes to the LAN configuration to suit various networks.
- Visualizing the LAN with "LAN Map"
- Use cloud services and expand functions for even greater convenience
Equipped with 10Gbps-Compatible Ports
The 10-Gigabit-ready combo ports (LAN port / SFP+ slot) enable high-speed communication over a 10-Gigabit fiber-optic connection. Additionally, by combining them with 10-Gigabit-compatible switches and Wi-Fi 6-compatible LAN access points, you can enhance both LAN and WAN speeds.
Next-Level Processing Performance

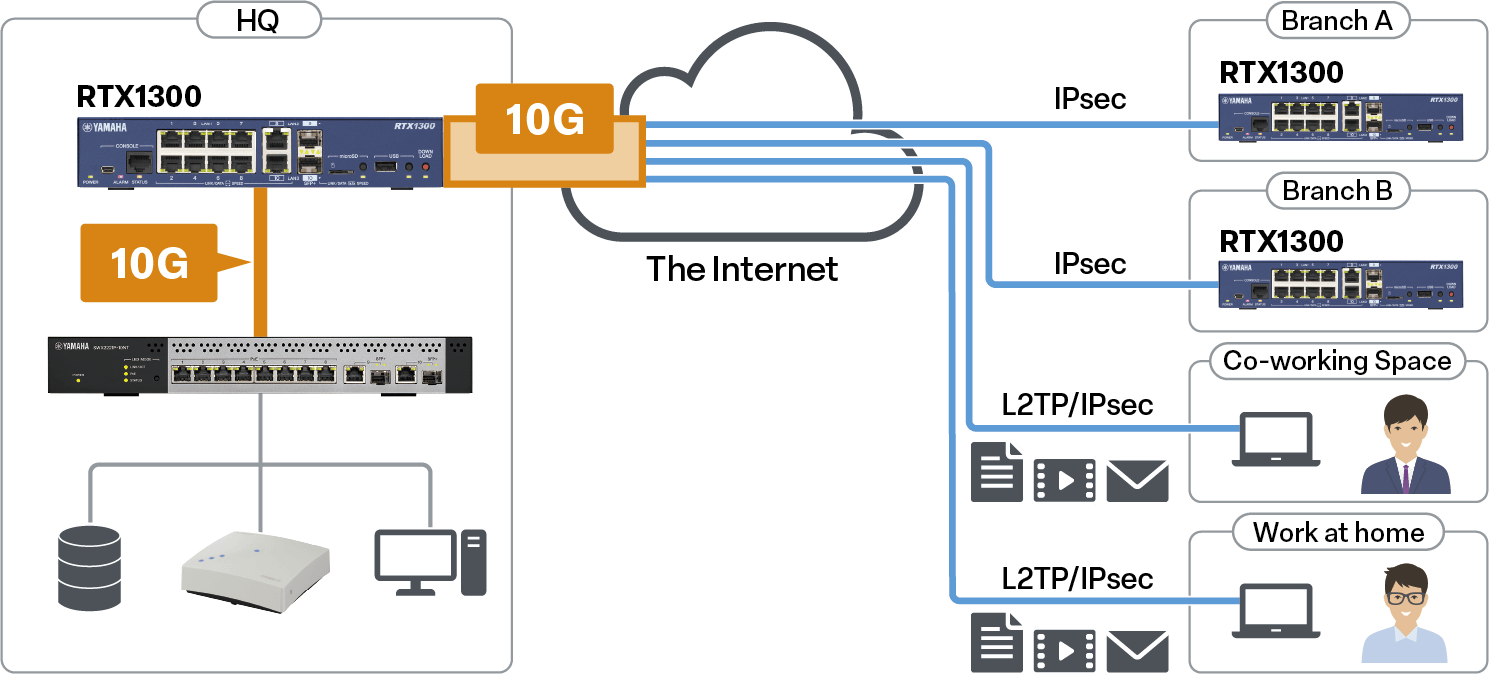

Throughput and overall performance are greatly improved compared to conventional routers. High processing power ensures stable communication, even with 10Gbps connections and advanced VPNs.
- Throughput: Max 9.9Gbps
- IPsec Throughput: Max 3.8Gbps
- NAT Sessions: Up to 250,000
- VPN Concurrent Sessions: Up to 1,100 sessions (Default 100 sessions)

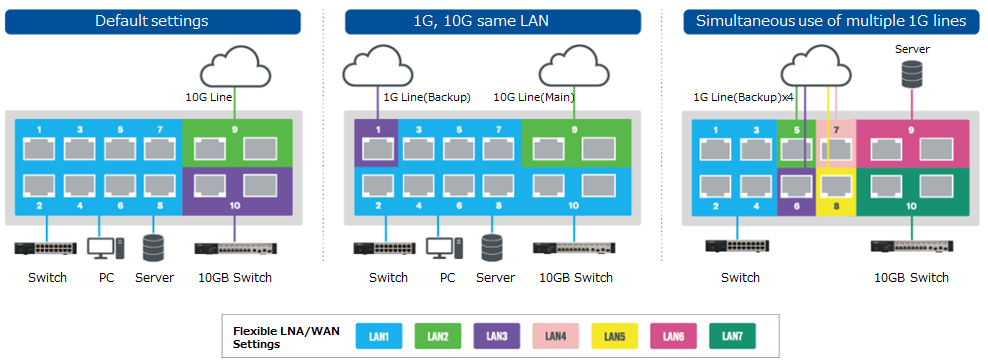

The new "Flexible LAN/WAN Port" function allows flexible changes to the LAN configuration to suit various networks.
The new "Flexible LAN/WAN Port" feature allows you to freely change the physical configuration of the LAN interface depending on the line speed and network configuration. Ports with different communication speeds can be assigned to the same LAN, and it also supports configuration via the Web GUI and use in conjunction with the LAN map, allowing you to build a highly manageable network while making the most of the 10 Gigabit ports.

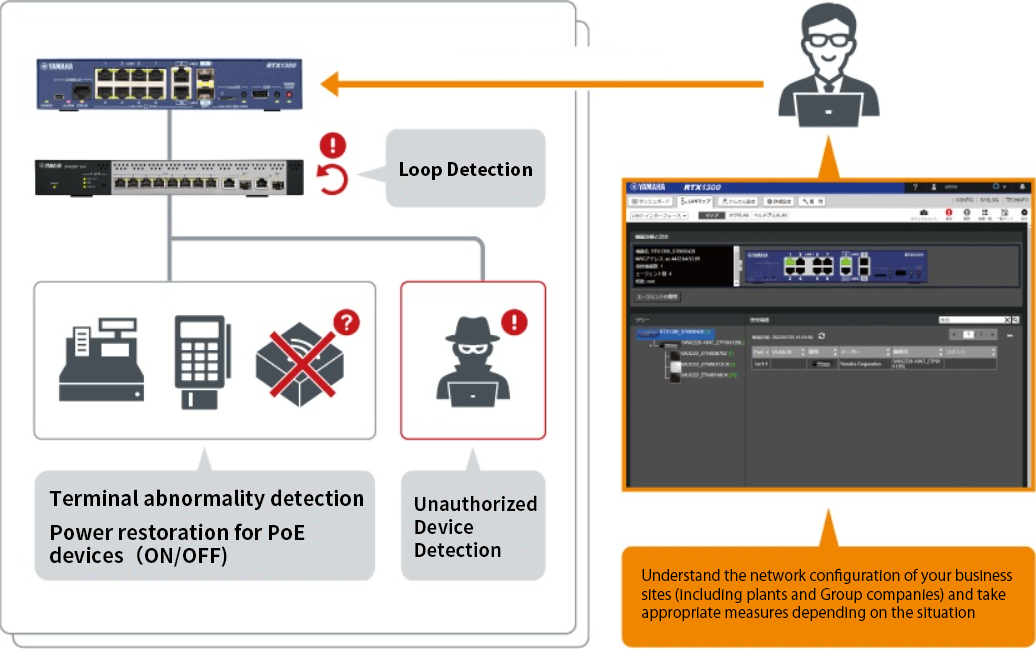

Visualizing the LAN with "LAN Map"
The popular "LAN Map" function from previous models is included. By clearly displaying the network configuration within the LAN, it reduces the management and operational burden on network administrators.
- Visualize the entire network, including terminals
- Agent Yamaha network device settings (IP settings, VLAN settings, CONFIG operations, etc.)
- Network anomaly detection/notification
- Displays a list of detailed information about devices and terminals in the network
- Control up to 128 agent devices (Rev.23.00.14 or later)

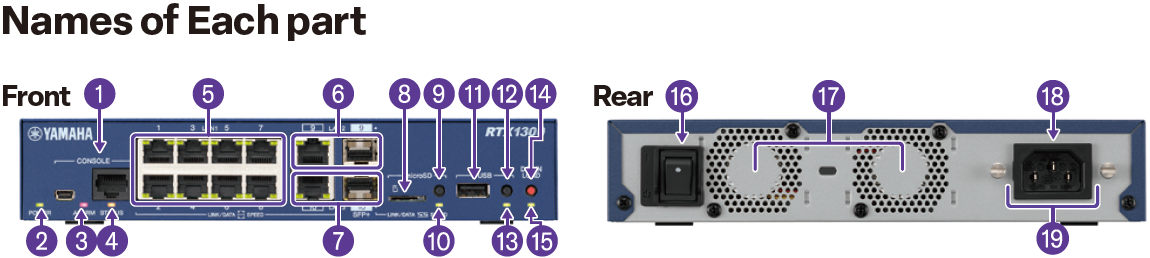

Specification
| Interface | LAN Ports | 8 ports (10BASE-T/100BASE-TX/1000BASE-T, Auto MDI/MDI-X or Fixed Straight). |
|---|---|---|
| 2 ports (shared with SFP+ slots) (100BASE-TX/1000BASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T, Auto MDI/MDI-X or Fixed Straight) | ||
| SFP+ Slots | SFP+ Slots | |
| WAN Port | WAN Port | |
| microSD Slot | microSD Slot | |
| USB Port | USB Port | |
| Memory | Console Ports (for configuration) | Console Ports (for configuration) |
| Flash ROM | Flash ROM | |
| Performance | RAM | RAM |
| Built-in L2 switch function | Built-in L2 switch function | |
| Functions for closed network services | Functions for closed network services | |
| Tag VLAN (IEEE 802.1Q) | Tag VLAN (IEEE 802.1Q) | |
| Number of PPPoE sessions | Number of PPPoE sessions | |
| Supported lines and service networks (*1) | FTTH (OPTICAL FIBER), ADSL, CATV, ATM LINE, IP-VPN NETWORK, WIDE-AREA ETHERNET NETWORK, MOBILE PHONE NETWORK, DATA CONNECT | |
| IPv4 connection format | Native, Tunnel, DHCP, PPPoE | |
| IPv6 connection format | Native, Tunnel, RA Proxy, DHCPv6-PD, PPPoE, IPoE | |
| Routing | Routed Protocols | IPv4, IPv6 |
| IPv4 Routing Protocols | RIP, RIP2, OSPF, BGP4 (EBGP, IBGP) | |
| IPv6 Routing Protocols | RIPng, OSPFv3 | |
| Number of route entries | 20,000 (*5) | |
| OSPF Neighbor Count | 100 (*5) | |
| Number of OSPF routes | Total when connected to 10 neighbors or less: 15,000, Total when connected to 100 neighbors: 3,000 | |
| BGP4 Peer Count | 32 | |
| Number of BGP4 routes | 20,000 (*5) | |
| Data Compression | IPComp, CCP (Stac LZS), VJC | |
| Throughput | Throughput | Max 9.9Gbit/s (*6) |
| IPsec Throughput | Max 3.8Gbit/s (*7) | |
| VPN Locations | sum | 100 (expandable up to 1,100 (*8)) (*9) |
| Ipsec | 100 (expandable up to 1,100 (*8)) | |
| L2TP/Ipsec | 100 (expandable up to 1,100 (*8)) | |
| L2TPv3 | 9 (expandable up to 29 (*8)) | |
| PPTP | 4 | |
| Multipoint Tunnel | 100 | |
| VPN function | IPsec (VPN function: NAT traversal, XAUTH) + AES128/256, 3DES, DES (encryption function: hardware processing) + IKEv1 (main mode, aggressive mode) / IKEv2, | |
| IKEv2 / IPsec remote access (PSK) (*10), PPTP (VPN function) + RC4 (encryption function) (*11), L2TP/IPsec, L2TPv3, L2TPv3/IPsec, IPIP tunnel, | ||
| Multipoint tunnel (server/client), IPsec route auto-add function | ||
| NAT | Address Translation Function | NAT, IP Masquerading, Static NAT, Static IP Masquerading, DMZ Host Function, PPTP Passthrough (Multiple Sessions) (*12), IPsec Passthrough (1 Session), |
| (NAT Descriptor Function) | FTP Support, Traceroute Support, Ping Support, SIP-NAT Support (*13), IP Masquerading Conversion Session Limit, Port Saving IP Masquerading, Hairpin NAT | |
| Number of NAT Sessions | 250000 | |
| QoS | QoS function (control method) | Priority control, Bandwidth control (Dynamic Trac Control), Dynamic Class Control, Tunnnel QoS, Bandwidth detection, Load notification |
| QoS function (classification method) | IP address, protocol, port number, ToS field | |
| QoS function (linkage with network-side QoS function) | Diffserv, Coloring (ToS), ToS → CoS conversion | |
| Security | Authentication function | RADIUS, PAP/CHAP, MS-CHAP/MS-CHAPv2 |
| Security Features | URL filter (internal database lookup type), DHCP terminal authentication function, Winny filter (Winny Version 2 compatible), Share filter (Share version 1.0 EX2 compatible), MAC address filter | |
| Firewall function (IPv4/IPv6 static filtering) | IP Address, Port, Protocol (Established, with TCP flag), FQDN, Source/Destination, Applies to LAN/WAN side IN/OUT | |
| Firewall function (IPv4/IPv6 dynamic filtering) | Basic Application (TCP, UDP), Applied Application (FTP, TFTP, DNS, WWW, SMTP, POP3, TELNET), FREE DEFINITION, APPLIES TO IN/OUT ON LAN/WAN SIDE | |
| Number of Dynamic Filter Sessions | 250000 | |
| Firewall function | Applies to IN/OUT on LAN side/WAN side, IP header, IP option header, 41 types of unauthorized access can be detected in categories such as ICMP/UDP/TCP/FTP, | |
| (IDS: IPv4 unauthorized access detection) | unauthorized access detection email notification function | |
| Backup | Backup function | VRRP, Floating Static, Network Path Backup, LAN/PP/Tunnel Interface Backup, Wireless WAN Backup, Backup Email Notification |
| IP keepalive ground count | 100 (expandable up to 1,100 (*8)) (*14) | |
| Management/Settings | Statistical management functions | Dashboard functions (system information, resource information, interface information, trac information, provider connection status, VPN connection status, YNO agent operation |
| status, number of NAT sessions, number of fastpath flows, number of dynamic filter sessions, keyword check statistics of URL, unauthorized access detection history, SYSLOG) | ||
| YNO | YNO Agent Function, GUI Forwarder, Zero Config, LAS | |
| LAN management | L2MS Manager (*15), VLAN Batch Configuration, Snapshot Function, Redundant LAN Cable, LAN Map, List Map | |
| SNMP | SNMP (v1, v2c, v3) | |
| Logging Capabilities | Storage in memory, Output by SYSLOG, Output to external memory (microSD, USB memory) (with encryption function), | |
| Log saving when the power switch is turned o・ (power-o・log saving function), Reboot log saving function | ||
| Log Storage Capacity | Up to 10,000 rows | |
| Means of setting | Console, TELNET server (multiplexed), TELNET client, SSH server (multiplexed), SSH client, Web GUI (custom GUI compatible), | |
| Configuration via external memory (microSD, USB memory), Download/upload via TFTP/SFTP/SCP | ||
| Recommended browsers for GUIs | (*16) •Windows: Microsoft Edge, Google Chrome, Mozilla FireFox •macOS: Safari •iPadOS: Safari | |
| Other features | DHCP SERVER, DHCP CLIENT, DHCP RELAY AGENT, DNS RECURSIVE SERVER, DNS SERVER SELECTION FUNCTION, CIDR, PROXY ARP, SNTP SERVER, NTP CLIENT, | |
| LAN SECONDARY ADDRESS SETTING, FILTERED ROUTING, LOOPBACK/NULL INTERFACE, PACKET FORWARDING FILTER, MULTIHOMING, Scheduling function, | ||
| Survival notification function, Netvoluntary DNS service support (*17), UPnP support, Wake on LAN support, NAT46/DNS46 function | ||
| Extensions | Lua Scripts | |
| Hardware | Status indicator | Front:30 (POWER, ALARM, STATUS, LAN [LINK×10, SPEED×10], SFP+[LINK×2, SPEED×2], microSD, USB, DOWNLOAD), Back: 0 |
| Operating environment conditions | Ambient temperature 0 to 45°C, ambient humidity 15 to 80% (non-condensing) | |
| Power | AC100~240V(50/60Hz)(*18), Built-in power supply, Power inlet (3-pole connector, C14 type), Power switch | |
| Maximum consumption power (picophase power), | 25.9W (48VA), 0.48A, 93.24kJ/h | |
| maximum consumption current, heat consumption | ||
| Energy-saving features | Energy Ecient Ethernet (EEE), shutting down unused LAN ports and SFP+ slots, shutting down microSD slots/USB ports | |
| Temperature measurement in the enclosure | - | |
| Case | Metal housing, Cooling fans: 2 | |
| Radio wave barrier specifications, | VCCI Class A, RoHS | |
| environmental load substance management | ||
| External dimensions | 220(W) × 42(H) × 294(D) mm (Protrusions not included) | |
| Weight (not including accessories) | 1.9kg | |
| Accessory | Power cord, Power cord relief bracket, Read before you begin (including warranty card), Rubber feet, Dust cover (factory installed, installed in SFP+ slot) | |
| Default IP address | 192.168.100.1 | |
